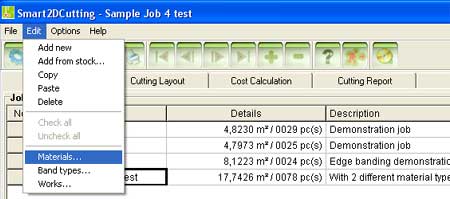

The "Materials" window is made up of 3 sections: Materials,
Minimum offcuts values and Material
price calculator.
|
- Materials
- allows you to configure materials options
Smart2DCutting manages different material panels and parts based
on the material field.
 |
| |
Name |
|
- the name of the material. This name appears
in the "Material" field of panels, parts and offcuts. |
| |
Saw width |
|
- the saw width is defined for each material.
The saw width is an important value. It should reflect the width of
the cut to get accurate cutting layouts. |
| |
Default band type |
|
- the default band type for the material.
When checking a checkbox in the "Edge banding" field, the
default band type for the part material is set. If no default band
type is configured for a particular material, the edge banding selection
box will be displayed. |
| |
Material price |
|
- the price of the material per area unit.
It can be defined per sq. meter, sq. inch or sq. foot. It is used
for cost calculation. |
| |
Cutting price |
|
- the price of the cutting operation, per
length unit. It can be defined per meter, inch or feet. It is used
for cost calculation. |
| |
Description |
|
- the description of the material. This
field doesn't appear anywhere else in the program. |
|
|
|
- Minimum offcuts
values - allows to define the minimum dimensions for
reusable offcuts, for the selected material type. Reusable offcuts
are displayed on the cutting layuouts and qualifies for the booking
process.
The key to maximum material yield is reusing offcuts.
Surplus material that is left after cutting can often be used
in another project.
Smart2DCutting can determine which offcuts to keep based on minimum
dimensions of reusable offcuts. Reusable offcuts are labeled on
the cutting layout and printed in reports.
For details on how to keep reusable offcuts see the Stock
Management section.
 |
| |
Enable tracking of minimum offcuts values |
|
- when checked Smart2DCutting will report
offcuts if their dimensions match any of the minimum Length and Width
specified. |
| |
Minimum offcuts values |
|
- the minimum Length and Width for an offcut
to be recorded. Up to 5 minimum offcuts dimensions can be defined
for each material. |
|
|
- Material price calculator
- allows you to calculate material price per area unit, giving
the panel price. This is useful when you only know the price of
the panel but not the price per area unit.
Enter the price per panel, the length and width of the panel and
the material price per area unit will be calculated automatically.
You can use the "Price unit" field to set the area unit
for which the price is to be calculated: square meter, square
inch or square foot.
To assign the material price to the selected material, click the
"Set new price" button.
 |
| |
Material |
|
- the material for which the price is to
be calculated. This field is read-only and it change based on the
selected material. |
| |
Price per panel |
|
- the price of a whole panel. |
| |
Panel length |
|
- the length of the panel. |
| |
Panel width |
|
- the width of the panel. |
| |
============= |
|
|
| |
Price unit |
|
- the area unit for which the price is to be calculated.
It can be sq. meter, sq. inch or sq. feet.
Please note that for low prices of the panel, the material price per
sq. inch can be very small ( < 0.01 ) and it will not be considered.
In this situations please use sq. foot or sq. meter for the "Price
unit" field. |
| |
Material price |
|
- the price of the material per area unit. The price
is calculated for the area unit specified in the field "Price
unit". |
|
| |
