Manage jobs


In Smart2DCutting panels and parts files are grouped into jobs (or projects). All files belonging to a job are automatically loaded when that job is selected in the grid.

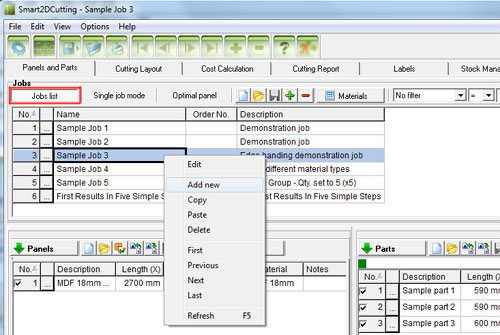

To define a new job, right click on the jobs grid and select "Add new ". Or you can alternatively use the "Insert" key or the "+" button from the top button bar.

To change a job name or description, double click on the description field to switch it to edit mode or just type the new value and press [Enter] to validate.

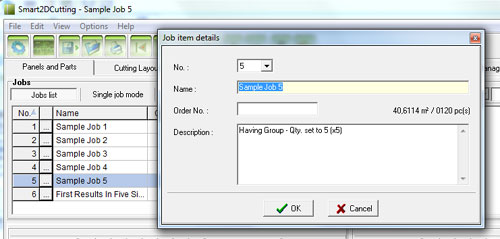

Alternatively, you can edit job details by clicking the edit button on the left of the job name.



To delete a job, select it first, then right click on the Jobs grid and select "Delete". Or you can alternatively use the "CTRL + Del" key combination or the "-" button from the top button bar.
